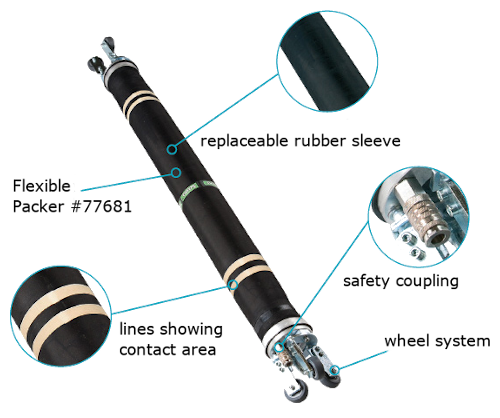

Sava Flexible Packers
Sava flexible Packers are suitable for patch repairs ranging from 3.3 feet - 16.4 feet
(1 to 5 meters).
They are equipped with a bypass and wheel system that allows positioning along the pipeline and can easily
bend and fit through manholes.
- Equipped with wheels
- Highly flexible
- Replaceable rubber sleeve
- Long lifetime
Sizes & Specifications

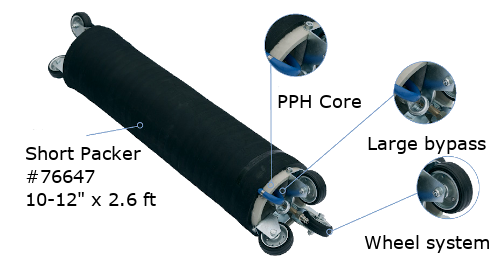

Sava Short Packers
Sava Short Packers have a replaceable double-layer rubber sleeve mounted on a PPH core.
Such a design allows the maximum possible bypass.
They are equipped with wheels and are up to 3.3 feet (1m) long.
- Large bypass
- Short construction
- Double layer rubber sleeve
Sizes & Specifications

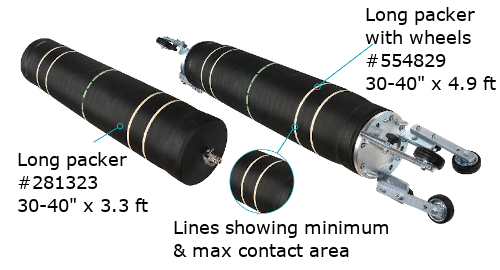

Sava Long Packers
Sava Long Packers are suitable for repairs of pipes of diameters from 200 up to 800 mm (8"-32").
Long packers are available with or without a wheel system. They are perfect for experienced users
when a bypass is not needed.
- Economical construction
- Two different designs
- Long lifetime
- Extremely flexible
Sizes & Specifications

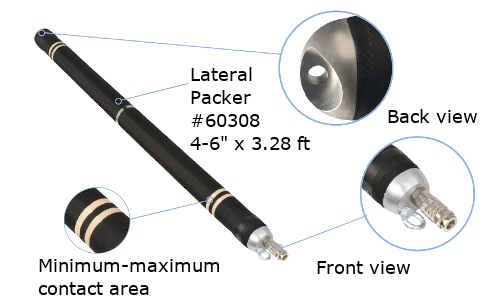

Sava Lateral Packers
Sava lateral packers are suitable for repairs of pipes of smaller diameters, especially in house
connection installations. These packers are rounded on both ends in order to simplify handling and insertion.
They are equipped with quick action couplings.
- Replaceable rubber sleeve
- Highly flexible
- Non-corrosive metal parts
- Lightweight and flexible
Sizes & Specifications

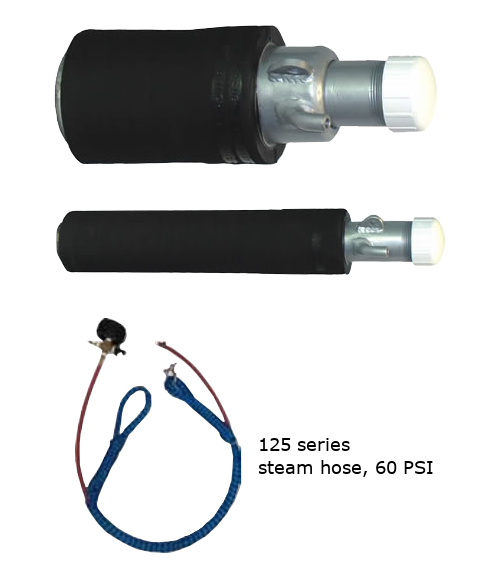

Steam Process Plugs
Single & Multi-Size steam processing plugs for sewer rehab
- All aluminum construction
- Field tested & approved by CIPP contractors
- DuPont Kevlar reinforced
- Long lasting - more cycles per plug = buy fewer plugs
- Sturdy aluminum inflation port - port is not located inside of the rubber bladder
- Baskets are available for larger sizes
- Most plugs come with 2" male bypass
- Factory replaceable / repairable bladder
Single Size Specifications (460 Series)
Multi-Sized Specifications (450 Series)

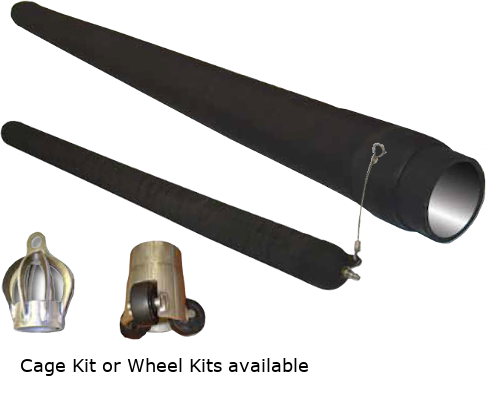

Point Repair Carriers
- Largest Bypass Available
- Exceeds Industry Standards
- Available with Cage Kit or Wheel Kit - No Tools Needed
Lateral Carrier Specifications
Point Repair Carrier Specifications

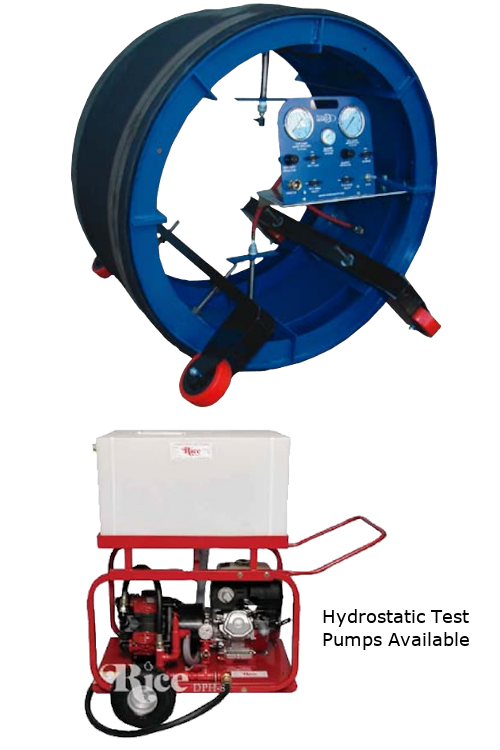

High Pressure Joint Testers, Grout Packers
- Available in Single Size or Multi-Sized
- Max test pressure of 100 PSI
- Doubles as a Grout Packer
- Comes with Test Panel
- 24" Wide Bladder
- Heavy Duty, Adjustable Wheels
- All Steel Construction
- Patented Telescopic Ports
- DuPont KevlarŪ Reinforced Bladder
- Available in Higher Operating Pressures
- Successfully Tests T-Lock Pipe
- Several Inches of Clearance Between Bladder & Pipe Wall, Allowing Joint Tester to Negotiate bends in the Pipe & Clear Allowable Deflection
Single Sized Specifications
Multi-Sized Specifications
Joint Tester Instructions
Hydrostatic Test Pump Instructions

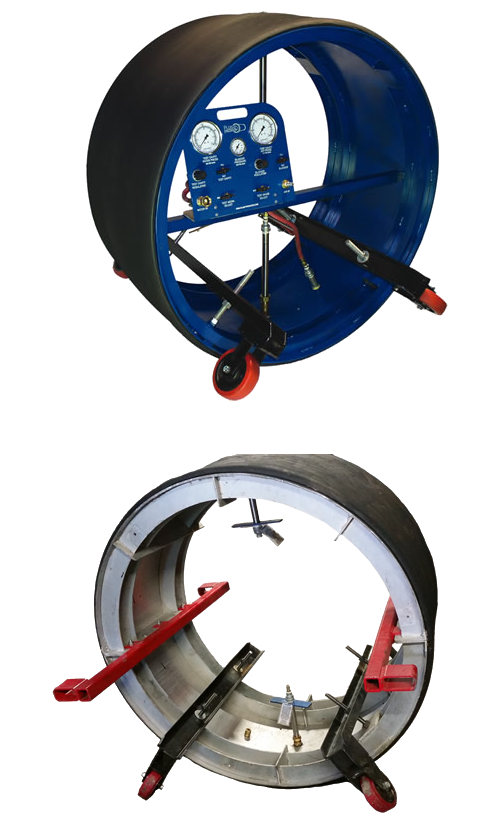

Low Pressure Multi-Size Joint Testers, Grout Packers
- Doubles as a Grout Packer
- Comes with Test Panel
- 24" Wide Bladder
- Heavy Duty, Adjustable Wheels
- Patented Telescopic Ports
- DuPont KevlarŪ Reinforced Bladder
- Successfully Tests T-Lock Pipe
- Several Inches of Clearance Between Bladder & Pipe Wall, Allowing Joint Tester to Negotiate bends in the Pipe & Clear Allowable Deflection
Specifications
Joint Tester Instructions
Aluminum Joint Testers (shown left bottom) include all of the above features, plus:
- Lighter Weight
- No Rust - Easier to Clean Up
Specifications

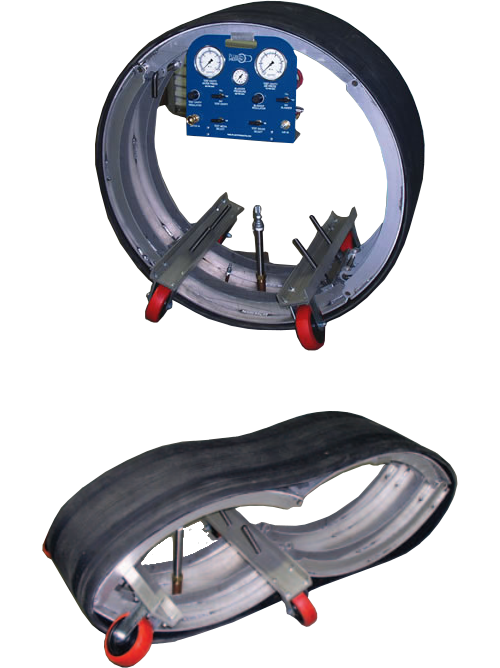

Low Pressure Multi-Size Collapsible Joint Testers
Grout Packers
The 18" wide bladder width and collapsibility allow for insertion down a 24" manhole.
Simply remove wheels & pull 2 pins to collapse
- 0-25 PSI Test Pressure
- 30" Thru 60" Pipe
- Compatible with Today's Non-Standard Pipe I.D.'s
- Heavy Duty, Adjustable Wheels
- Patented Telescopic Ports
- Removable DuPont KevlarŪ Reinforced Bladder
- Successfully Tests T-Lock Pipe
- Comes with Air/Water Test Panel
- No Grout Band to Remove
Specifications
Joint Tester Instructions

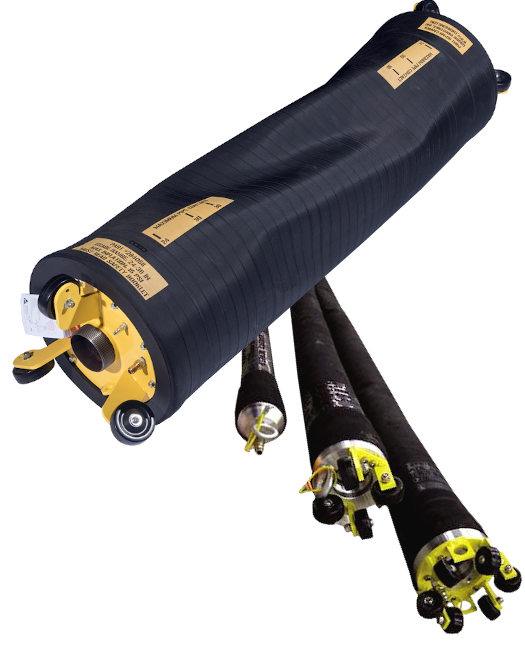

Point Repair Carrier
Cherne's point repair carriers are well-suited for most point repair systems.
Available for multi-size line covers pipe sizes from 4"-36" diameters and lengths up to 15'.
Cherne's carriers are known for both their durability and reliability.
Custom lengths are available upon request.
- Reduced deflated diameters
- New expanded multi-size line covers pipe sizes from 4"-36" diameters and lengths up to 15' (Custom lengths available)
- Maximum pipe contact guides and center line ensure proper placement of repair medium to minimize waste and increase productivity
- 1/4" NPT Inflation Port with male quick disconnect for ease of connection
- Durable, flexible natural corded rubber
- Bypass design allows sewage bypass during repair - no need to shut down the line
- The flexible design allows all units to be folded in half for transport
- Redesigned integrated caster wheel assembly and bypass channel have been optimized for ease of movement and enhanced bypass of effluent
Specifications
