This high displacement motor is more powerful than similar blue motors since it has a larger gerotor and more displacement which offers higher cutting force to plow into roots, grease, protruding traps and other stoppages. This results in a 40% increase in torque.
This motor is bolted by 4 bolts to the front flange and two bolts in the tail nozzle. Single skid design makes it easy to identify the size and eliminate the change of losing one of the skid halves. Designed for lines 6" and up. The motor can accommodate hose sizes of 3/4" and 1" with 35-80 gpm of flow, pressures from 2000-3000 psi. Rated to maximum of 235 lbs of torque.
Skid sizes: 6", 8", 10", 12", 15", 18", 20", 22", 24"
Motor,Tail nozzle: Hi Displacement, For 3/4" and 1" hose. Repair kits available.
Hubs: 5/8" and 1" for standard and heavy duty root saws.
The puma round body motor can be used with Patriot and Smart cutter skids. We offer an full line of saws, skids and cutters to accommodate your needs.

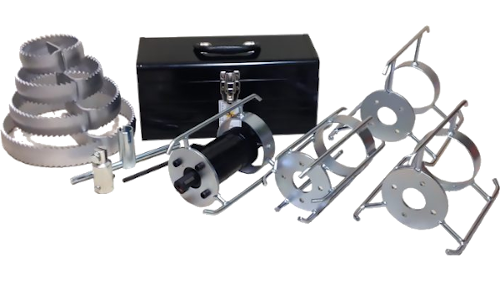

The kit comes with 4 saws and 4 skids, 6", 8", 10" and 12' and a tool box and arbor turning tool and hub.
The round profile of the cutters allows it to enter sewer lines from 4" and up. The motor can accommodate hose sizes of 1" and 3/4" with flow from 35 to 80 gpm and pressure from 2000 to 3000 psi. Rated up to maximum of 235 lbs. of torque and 175 lbs. at continuous operation. This tool has the power to clean while the bearing can take a beating and keep on ticking. This motor beat all competitor motors.

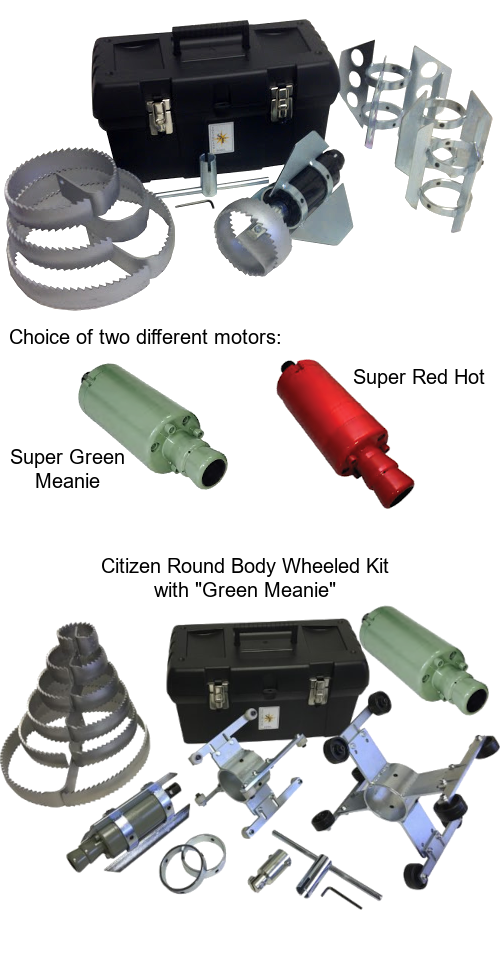

← Choice of two different motors shown left
Round Body Super "Red Hot": This heavy duty bearing hydraulic root saw motor has been specially machined for a Heavy Duty thrust bearing that performs better for extended life, smooth running and reduced maintenance problems. This larger steel bearing absorbs the constant pounding of the shaft when plowing into root masses and stoppages. This motor fits all round body skids including Patriot and Smart Cutters.
"Super Green Meanie": This round Body root cutting motor is a superior cutting and ripping tool for cleaning roots, cutting taps and destroying other debris and buildup found in all sewer lines. The round profile of this motor allows it to be used in 4" pipes and up for either 3/4" or 1" Hose. Flow from 35 to 80 gpm and pressure from 1750 to 3000. 235 lbs. of torque. buy this motor only to replace your worn out Patriot or smart cutter green motor and use the green skids you have or buy our skids, standard or wheeled.
Citizen round body "super green machine" wheeled kit (Shown Left):
Handles Pipes from 4" to 15" includes:
Motor, Heavy Duty concave root saws of 4", 6", 8", 10" 12" and 15". 4" Round ring set, 6" Skid, 8", 10"
adjustable wheeled skid, 12", 15" wheeled skids, 1" Hub for saws, turning maintenance tool, tool box and instructions.
Skid sizes:
4" ring, 6", 8", 10", 12", 15", 18", 20", 24"
Wheeled skid: Two Adjustable Skid sizes: 8" to 10" and 12" to 15"
Hubs: 5/8" and 1" for standard and heavy duty root saws.

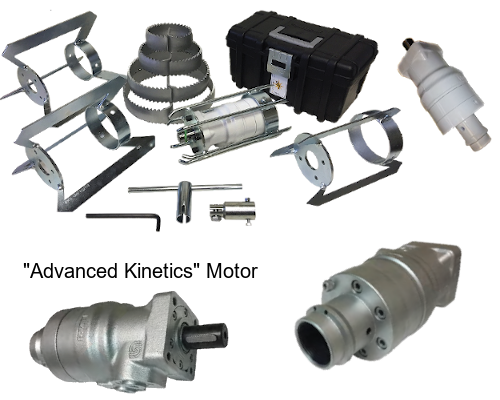

This motor is the most powerful one in the line up. Featuring a Gerotor design that internally lowers resistance and allows the motor to operate more efficiently while producing maximum cutting results. This series of motors have all steel thrust bearings with robust rollers that can handle the higher pressure loads of larger pumps and heavy cleaning in larger lines.
Referred to as a "Contractor Duty" motor as it can handle intense use for long periods of time. Designed for lines from 6" to 30", the motor comes in 3/4", 1" and 1 1/4". It canhandle flows from 10 gpm to 170 gpm and pressures from 1500 to 3000 psi. Rated at a maximum torque of 288 lbs / 220 lbs of continuous torque which is required for cuttingtaps in larger sizes.
This "Advanced Kinetics" motor has an infusion process at the cellular level applied to the internal parts which improves hydraulic performance and almost eliminates internal corrosion by using a patented finish that improves coefficient, allowing parts to run smoother which reduces drag, saves water and increases productivity. Silky smooth to turn and is ideal for recycler units. Even in cases where the unit held water inside for several weeks, it was still able to turn.
Skid sizes: 6", 8", 10", 12", 15", 18", 20", 22", 24"
Motors: Corrosion resistant, silky smooth, ideal for recycler units.
Skids: 2 part Shamrock style; 6", 8", 10", 12", 15", 18", 20", 22", 24"

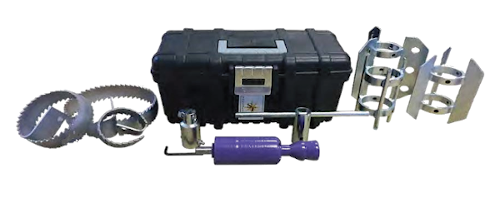

The "PURPLE DEBRIS EATER" Lateral root cutter motor packs a punch as it uses high torque and low speed to grind up grease and rip through roots in smaller 3" to 8" lines. Sized for 1/2", 3/4" or 1" hose it can accommodate pressures from 900 to 2000 psi and flows from 20 to 80 gpm. These purple motors can be bought alone or in kits. Skids are one piece design so they are easy to install.
Chuck: 3 blade chuck for 1" hydraulic root cutter
Gopher skid: with front ring and rear collar
Hub: 5/8" and 1" for std/heavy duty root saws.
Skid sizes:
3" ring set,
4", 6", 8"

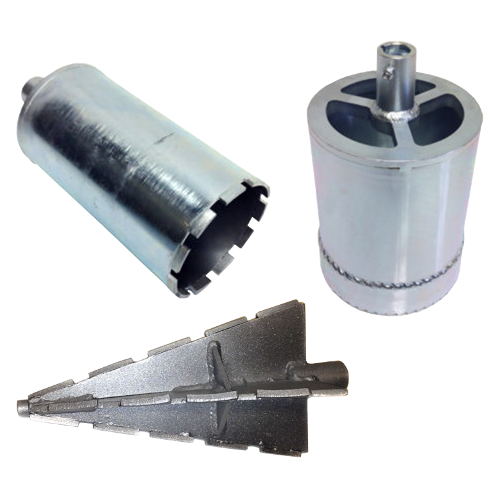

Diamond Tap Cutters: For use with your Hydraulic Root Cutters. Available with 1" or 5/8" hub. If the the diamond segments break, they can be replaced for a minimal charge. Sizes: 6", 8", 10", 12", 15" 18"
PVC Tap Cutter: Fits your Hydraulic Root Cutter motor and come equipped with a thick back plate and barrel. The sharpened, hardened teeth allow cuts through protruding lateral PVC quickly. Sizes: 6", 8", 10", 12", 15"
Arrow Diamond Tipped Cutters: Designed for lines with calcium deposits. These cutters bore into the center of the line and chip away with four diamond segmented flutes. 1/4" reinforced plate with a weld on arbor. Sizes: 6", 8", 10", 12", 15"
